Arduino UNO WiFi firmware updater

This tutorial will guide you in the process of updating the firmware of your Arduino UNO WiFi board.

Hardware required

Circuit

Connect the board at the USB port of your computer ready with Arduino Software (IDE) 1.8.0 or later.

UNO WiFi Firmware updater procedure

To simplify the process, we have prepared a tool - UNO WiFiFirmwareUpdater - available in Arduino IDE 1.8.0 or later.

Follow these steps to enable this tools into Arduino software:

  • Download the tool here.

  • Create a folder called tools into the sketchbook directory (normally in Documents >Arduino).

  • Extract it.

Now:

  • Launch the Arduino Software (IDE) 1.8.0 or later.

  • Connect the board to PC.

  • Select the Arduino UNO WiFi as board in the Tools>Board menu.

  • Select the corresponding serial port in the Tools>Port menu.

  • Upload the ESP Recovery sketch. It is into the UNOWiFiDev.Edition Library. Download it from Library Manager.

/*ESP Recovery sketch*/
#include <Wire.h>
#include <UnoWiFiDevEd.h>

#define BAUD 9600

WifiData ESPSerial;

void setup()
{

 Serial.begin(BAUD);

 pinMode(13, OUTPUT);

 digitalWrite(13, LOW);

 ESPSerial.begin(BAUD);
}

void loop()
{

 while (Serial.available()) {

 char inChar = (char)Serial.read();

 ESPSerial.write(inChar);

 }

 while (ESPSerial.available()) {

 char inChar = (char)ESPSerial.read();

 Serial.write(inChar);

 }

}

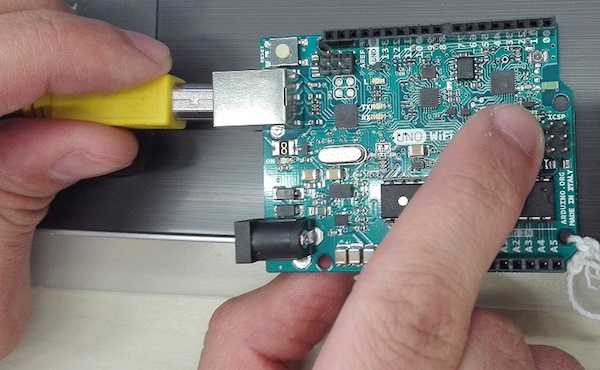

  • Put the board in DFU mode, keeping pressed the ESP B/L button and connect the board to PC

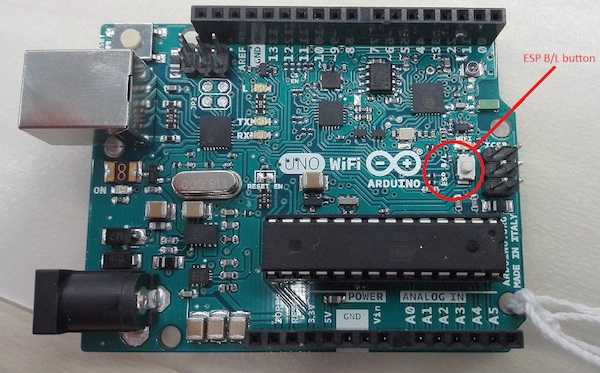

ESP button

DFU mode

  • Select the UnoWiFi Firmware Updater from the Tools menu.

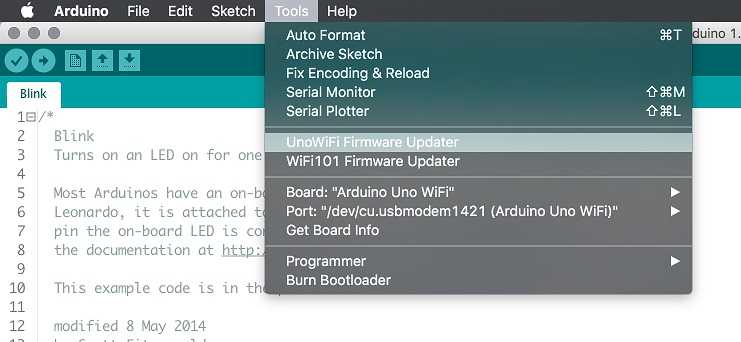

UNO WiFi firmware updater tool

  • Click on Refresh list if the port is not listed.

  • Select the corresponding port.

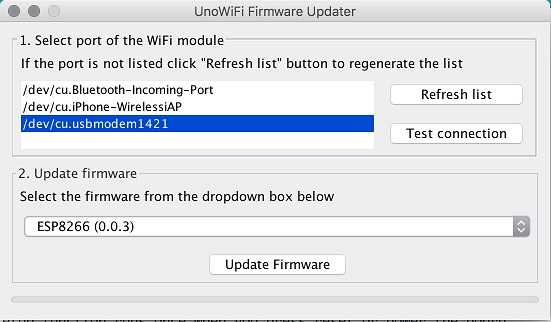

Select the port

  • Click on Test connection.

  • Select from windows menu the ESP firmware requested.

  • Click on Update Firmware.

  • Wait the end of process.

Warning: The process could last several minutes.

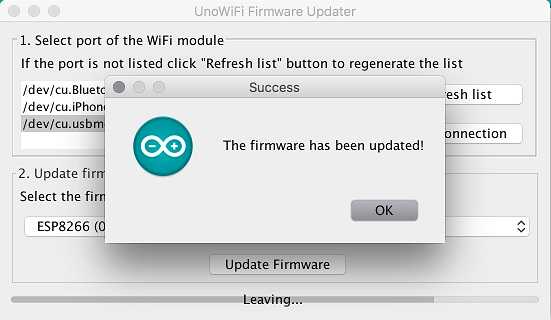

updated
