Older Boards
Arduino USB
ArduinoUno

ARDUINO UNO

This is the latest revision of the basic Arduino USB board. It connects to the computer with a standard USB cable and contains everything else you need to program and use the board. It can be extended with a variety of shields: custom daughter-boards with specific features. It is similar to the Duemilanove, but has a different USB-to-serial chip the ATMega8U2, and newly designed labeling to make inputs and outputs easier to identify. More
Duemilanove

ARDUINO DUEMILANOVE

The Duemilanove automatically selects the appropriate power supply (USB or external power), eliminating the need for the power selection jumper found on previous boards. It also adds an easiest to cut trace for disabling the auto-reset, along with a solder jumper for re-enabling it. Note: around March 1st, 2009, the Duemilanove started to ship with the ATmega328p instead of the ATmega168. More
ArduinoDiecimila

ARDUINO DIECIMILA

The main change in the Arduino Diecimila is that it can be reset from the computer, without the need to physically press the reset button on the board. The Diecimila uses a low dropout voltage regulator which lowers the board's power consumption when powered by an external supply (AC/DC adapter or battery). A resettable polyfuse protects your computer's USB ports from shorts and surges. It also provides pin headers for the reset line and for 3.3V. There is a built-in LED on pin 13. Some blue Diecimila boards say "Prototype - Limited Edition" but are in fact fully-tested production boards (the actual prototypes are red). More
ArduinoNG

ARDUINO NG REV. C

Revision C of the Arduino NG does not have a built-in LED on pin 13 - instead you'll see two small unused solder pads near the labels "GND" and "13". There is, however, about 1000 ohms of resistance on pin 13, so you can connect an LED without external resistor. Schematic
ArduinoNG-240

ARDUINO NG 240

The Arduino NG uses the FTDI FT232RL USB-to-Serial converter, which requires fewer external components that the FT232BM. It also has a built-in LED on pin 13 (which may interfere with SPI communication). Later NG's shipped with an ATmega168 instead of an ATmega8, though either chip can be used with any board. Schematic
ARDUINO EXTREME v2

ARDUINO EXTREME v2

Version 2 of the Arduino Extreme uses a gridded ground plane and includes the new "www.arduino.cc" URL.
ArduinoExtreme-v1-240

ARDUINO EXTREME

The Arduino Extreme uses many more surface mount components than previous USB Arduino boards and comes with female pin headers. It also has RX and TX LEDs that indicate when data is being sent to or from the board.
ARDUINO USB v2 240

ARDUINO USB v2.0

The second version of the Arduino USB corrected the USB connector pinout and updated the URL to "arduino.berlios.de"; it was labelled "Arduino USB v2.0". (Eagle files, schematic, assembly instructions, photo of an assembled board). Assembly instructions
Arduino USB

ARDUINO USB

The Arduino USB was the first board labelled "Arduino". These were mainly sold unassembled as kits. The first version had an incorrect pinout for the USB connector and had the URL "www.potemkin.org".
Arduino Bluetooth
ArduinoBT

ARDUINO BT

The Arduino BT is a microcontroller board originally was based on the ATmega168, but now is supplied with the 328, and the Bluegiga WT11 bluetooth module. It supports wireless serial communication over bluetooth (but is not compatible with Bluetooth headsets or other audio devices).
Arduino Serial
Arduino Serial v2.0

ARDUINO SERIAL v2.0

A revised version of the serial board with the URL "arduino.berlios.de".
ARDUINO USB v2 240

ARDUINO SERIAL

The original version of the Arduino serial board. Includes the url "www.potemkin.org". More
Arduino Single-Sided Serial
Severino (S3V3)

SEVERINO (S3V3)

This is the third version of the single-sided board. It has fewer bridges (three) than the original and includes TX, RX, and pin 13 LEDs. The ICSP and power headers are compatible with the Diecimila. More
ORIGINAL

ORIGINAL

The initial design of the single-sided board (labeled version 2 because it was derived from v. 2 of the serial board). Requires six bridges. Has a 1K resistor (but no LED) on pin 13. The ICSP header location is not compatible with other boards.
Arduino Mega
ARDUINO MEGA

ARDUINO MEGA

The original Arduino Mega has an ATmega1280 and an FTDI USB-to-serial chip. More
Arduino Lilypad
LilyPad_03/04

ARDUINO LILYPAD 03/04

LilyPad Arduino 04
This revision uses the ATmega328V instead of the ATmega168V. All other detials are identical to version 03.
LilyPad Arduino 03
This revision has a 6-pin programming header that's compatible with FTDI USB cables and the Sparkfun FTDI Basic Breakout. It adds support for automatic reset, allowing sketches to be uploaded without pressing the reset button on the board. The header is surface mounted, meaning that the board has no pokey bits sticking out the back.
LilyPad1_2

ARDUINO LILLYPAD 02

The second revision includes an external 8mhz oscillator. The bootloader has also been updated to Limor Fried's "no wait" bootloader. When the LilyPad is supplied with power, the sketch starts immediately. The bootloader is triggered only when the reset switch is pressed. Schematic
LilyPad_1

ARDUINO LILYPAD 01

In the first revision of the LilyPad Arduino the 10-pin ICSP header was changed to a 6-pin ICSP header and a four pin header w/ RX, TX, +5V, and GND was added.

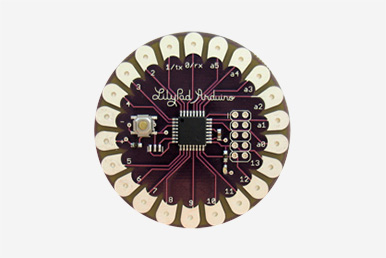

LilyPad1_00

ARDUINO LILLYPAD 00

The initial design of the Arduino LilyPad had a 10-pin ICSP header and used the internal clock on the ATmega168 rather than an external oscillator. The bootloader on the initial design is the traditional NG bootloader.
Arduino NANO
ARDUINO NANO 3.0

ARDUINO NANO 3.0

The Arduino Nano 3.0 has an ATmega328 and a two-layer PCB. The power LED moved to the top of the board.

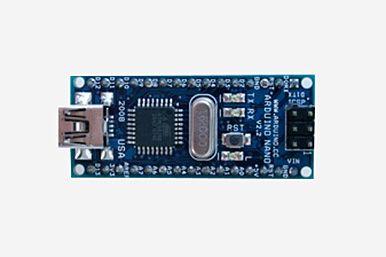

ARDUINO NANO 2.X

ARDUINO NANO 2.X

The Arduino Nano 2.x boards have an ATmega168 and a four-layer PCB.
Arduino Mini

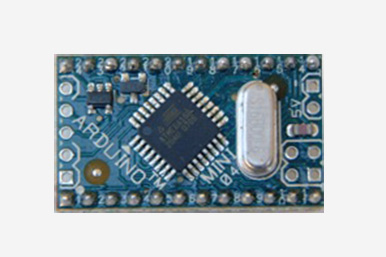

ARDUINOMINI04

ARDUINO MINI 04

On this version of the Arduino Mini, two of the pins changed. The third pin became reset (instead of ground) and fourth pin became ground (instead of being unconnected). These boards are labelled "Mini 04".
ARDUINOMINI03

ARDUINO MINI 03

On this board, a solder point for digital pin 7 was added to the edge of the board (next to the solder points for TX, RX, +5V, and Ground). Each of the pins is numbered and the board is labelled "Mini 03".
ARDUINOSTAMP02

ARDUINO STAMP 02

The initial production version of the Arduino Mini was labelled "Stamp 02".
Mini Usb Adapter
Mini USB Adapter 03

MINI USB ADAPTER 03

This version of the Mini USB Adapter breaks out many more pins of the FTDI USB-to-serial chip. It is labeled "USB Mini 03".

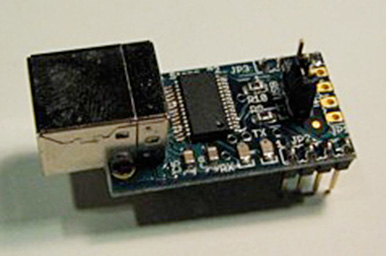

Mini USB Adapter

MINI USB ADAPTER

The original Mini USB Adapter was labelled "Arduino Stamp 02".
