Physical Pixel

/*

  Physical Pixel

  An example of using the Arduino board to receive data from the computer. In

  this case, the Arduino boards turns on an LED when it receives the character

  'H', and turns off the LED when it receives the character 'L'.

  The data can be sent from the Arduino Serial Monitor, or another program like

  Processing (see code below), Flash (via a serial-net proxy), PD, or Max/MSP.

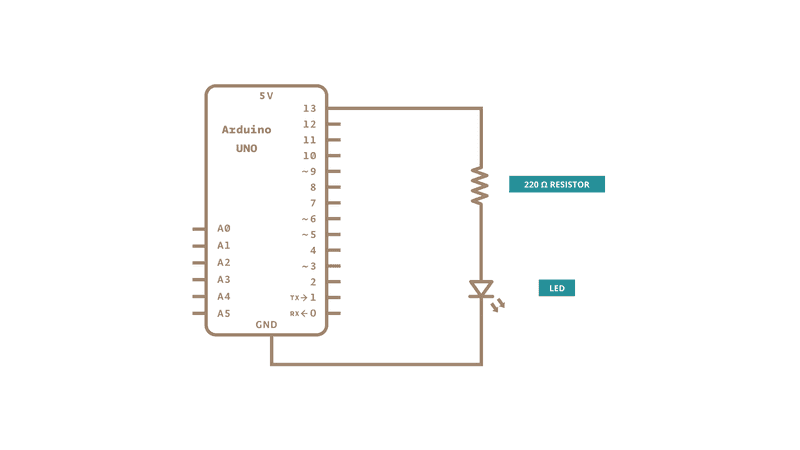

  The circuit:

  - LED connected from digital pin 13 to ground

  created 2006

  by David A. Mellis

  modified 30 Aug 2011

  by Tom Igoe and Scott Fitzgerald

  This example code is in the public domain.

  http://www.arduino.cc/en/Tutorial/PhysicalPixel

*/

const int ledPin = 13; // the pin that the LED is attached to
int incomingByte;      // a variable to read incoming serial data into

void setup() {

  // initialize serial communication:

  Serial.begin(9600);

  // initialize the LED pin as an output:

  pinMode(ledPin, OUTPUT);
}

void loop() {

  // see if there's incoming serial data:

  if (Serial.available() > 0) {

    // read the oldest byte in the serial buffer:

    incomingByte = Serial.read();

    // if it's a capital H (ASCII 72), turn on the LED:

    if (incomingByte == 'H') {

      digitalWrite(ledPin, HIGH);

    }

    // if it's an L (ASCII 76) turn off the LED:

    if (incomingByte == 'L') {

      digitalWrite(ledPin, LOW);

    }

  }
}

/* Processing code for this example

  // Mouse over serial

  // Demonstrates how to send data to the Arduino I/O board, in order to turn ON

  // a light if the mouse is over a square and turn it off if the mouse is not.

  // created 2003-4

  // based on examples by Casey Reas and Hernando Barragan

  // modified 30 Aug 2011

  // by Tom Igoe

  // This example code is in the public domain.

  import processing.serial.*;

  float boxX;

  float boxY;

  int boxSize = 20;

  boolean mouseOverBox = false;

  Serial port;

  void setup() {

    size(200, 200);

    boxX = width / 2.0;

    boxY = height / 2.0;

    rectMode(RADIUS);

    // List all the available serial ports in the output pane.

    // You will need to choose the port that the Arduino board is connected to

    // from this list. The first port in the list is port #0 and the third port

    // in the list is port #2.

    // if using Processing 2.1 or later, use Serial.printArray()

    println(Serial.list());

    // Open the port that the Arduino board is connected to (in this case #0)

    // Make sure to open the port at the same speed Arduino is using (9600bps)

    port = new Serial(this, Serial.list()[0], 9600);

  }

  void draw() {

    background(0);

    // Test if the cursor is over the box

    if (mouseX > boxX - boxSize && mouseX < boxX + boxSize &&

        mouseY > boxY - boxSize && mouseY < boxY + boxSize) {

      mouseOverBox = true;

      // draw a line around the box and change its color:

      stroke(255);

      fill(153);

      // send an 'H' to indicate mouse is over square:

      port.write('H');

    }

    else {

      // return the box to its inactive state:

      stroke(153);

      fill(153);

      // send an 'L' to turn the LED off:

      port.write('L');

      mouseOverBox = false;

    }

    // Draw the box

    rect(boxX, boxY, boxSize, boxSize);

  }

*/

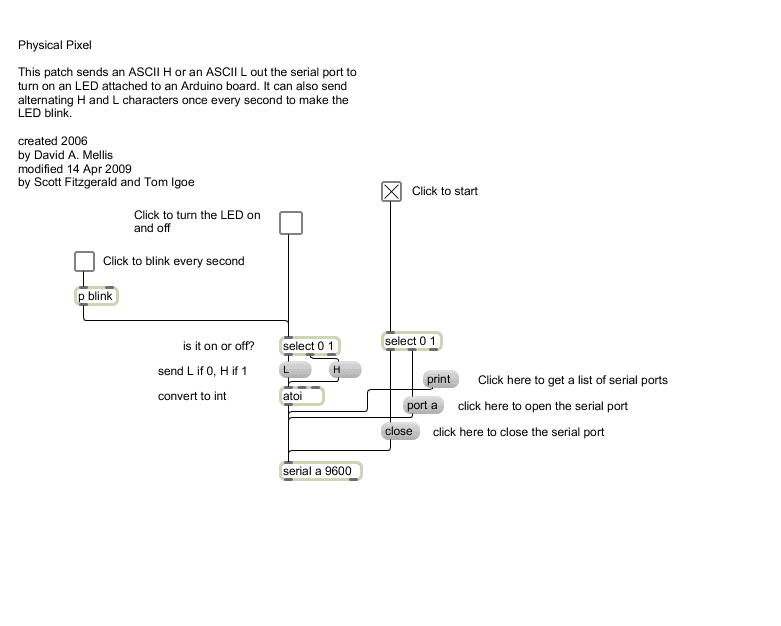

/* Max/MSP version 5 patch to run with this example:

----------begin_max5_patcher----------

1672.3oc2ZszaaiCD9ryuBBebQVCQRYao8xhf1cQCPVfBzh8RRQ.sDsM2HSZ

HQmlzh9eu7gjsjsEk7y0oWjiHoHm4aluYHGlueUmtiDuPy5B9Cv8fNc99Uc5

XZR2Pm726zcF4knDRlYXciDylQ4xtWa6SReQZZ+iSeMiEQR.ej8BM4A9C7OO

kkAlSjQSAYTdbFfvA27o2c6sfO.Doqd6NfXgDHmRUCKkolg4hT06BfbQJGH3

5Qd2e8d.QJIQSow5tzebZ7BFW.FIHow8.2JAQpVIIYByxo9KIMkSjL9D0BRT

sbGHZJIkDoZOSMuQT.8YZ5qpgGI3locF4IpQRzq2nDF+odZMIJkRjpEF44M3

A9nWAum7LKFbSOv+PSRXYOvmIhYiYpg.8A2LOUOxPyH+TjPJA+MS9sIzTRRr

QP9rXF31IBZAHpVHkHrfaPRHLuUCzoj9GSoQRqIB52y6Z.tu8o4EX+fddfuj

+MrXiwPL5+9cXwrOVvkbxLpomazHbQO7EyX7DpzXYgkFdF6algCQpkX4XUlo

hA6oa7GWck9w0Gnmy6RXQOoQeCfWwlzsdnHLTq8n9PCHLv7Cxa6PAN3RCKjh

ISRVZ+sSl704Tqt0kocE9R8J+P+RJOZ4ysp6gN0vppBbOTEN8qp0YCq5bq47

PUwfA5e766z7NbGMuncw7VgNRSyQhbnPMGrDsGaFSvKM5NcWoIVdZn44.eOi

9DTRUT.7jDQzSTiF4UzXLc7tLGh4T9pwaFQkGUGIiOOkpBSJUwGsBd40krHQ

9XEvwq2V6eLIhV6GuzP7uzzXBmzsXPSRYwBtVLp7s5lKVv6UN2VW7xRtYDbx

7s7wRgHYDI8YVFaTBshkP49R3rYpH3RlUhTQmK5jMadJyF3cYaTNQMGSyhRE

IIUlJaOOukdhoOyhnekEKmZlqU3UkLrk7bpPrpztKBVUR1uorLddk6xIOqNt

lBOroRrNVFJGLrDxudpET4kzkstNp2lzuUHVMgk5TDZx9GWumnoQTbhXsEtF

tzCcM+z0QKXsngCUtTOEIN0SX2iHTTIIz968.Kf.uhfzUCUuAd3UKd.OKt.N

HTynxTQyjpQD9jlwEXeKQxfHCBahUge6RprSa2V4m3aYOMyaP6gah2Yf1zbD

jVwZVGFZHHxINFxpjr5CiTS9JiZn6e6nTlXQZTAFj6QCppQwzL0AxVtoi6WE

QXsANkEGWMEuwNvhmKTnat7A9RqLq6pXuEwY6xM5xRraoTiurj51J1vKLzFs

CvM7HI14Mpje6YRxHOSieTsJpvJORjxT1nERK6s7YTN7sr6rylNwf5zMiHI4

meZ4rTYt2PpVettZERbjJ6PjfqN2loPSrUcusH01CegsGEE5467rnCdqT1ES

QxtCvFq.cvGz+BaAHXKzRSfP+2Jf.KCvj5ZLJRAhwi+SWHvPyN3vXiaPn6JR

3eoA.0TkFhTvpsDMIrL20nAkCI4EoYfSHAuiPBdmJRyd.IynYYjIzMvjOTKf

3DLvnvRLDLpWeEOYXMfAZqfQ0.qsnlUdmA33t8CNJ7MZEb.u7fiZHLYzDkJp

R7CqEVLGN75U+1JXxFUY.xEEBcRCqhOEkz2bENEWnh4pbh0wY25EefbD6EmW

UA6Ip8wFLyuFXx+Wrp8m6iff1B86W7bqJO9+mx8er4E3.abCLrYdA16sBuHx

vKT6BlpIGQIhL55W7oicf3ayv3ixQCm4aQuY1HZUPQWY+cASx2WZ3f1fICuz

vj5R5ZbM1y8gXYN4dIXaYGq4NhQvS5MmcDADy+S.j8CQ78vk7Q7gtPDX3kFh

3NGaAsYBUAO.8N1U4WKycxbQdrWxJdXd10gNIO+hkUMmm.CZwknu7JbNUYUq

0sOsTsI1QudDtjw0t+xZ85wWZd80tMCiiMADNX4UzrcSeK23su87IANqmA7j

tiRzoXi2YRh67ldAk79gPmTe3YKuoY0qdEDV3X8xylCJMTN45JIakB7uY8XW

uVr3PO8wWwEoTW8lsfraX7ZqzZDDXCRqNkztHsGCYpIDDAOqxDpMVUMKcOrp

942acPvx2NPocMC1wQZ8glRn3myTykVaEUNLoEeJjVaAevA4EAZnsNgkeyO+

3rEZB7f0DTazDcQTNmdt8aACGi1QOWnMmd+.6YjMHH19OB5gKsMF877x8wsJ

hN97JSnSfLUXGUoj6ujWXd6Pk1SAC+Pkogm.tZ.1lX1qL.pe6PE11DPeMMZ2

.P0K+3peBt3NskC

description: ''
featuredImage: ''
-----------end_max5_patcher-----------

*/
